Description

Scope

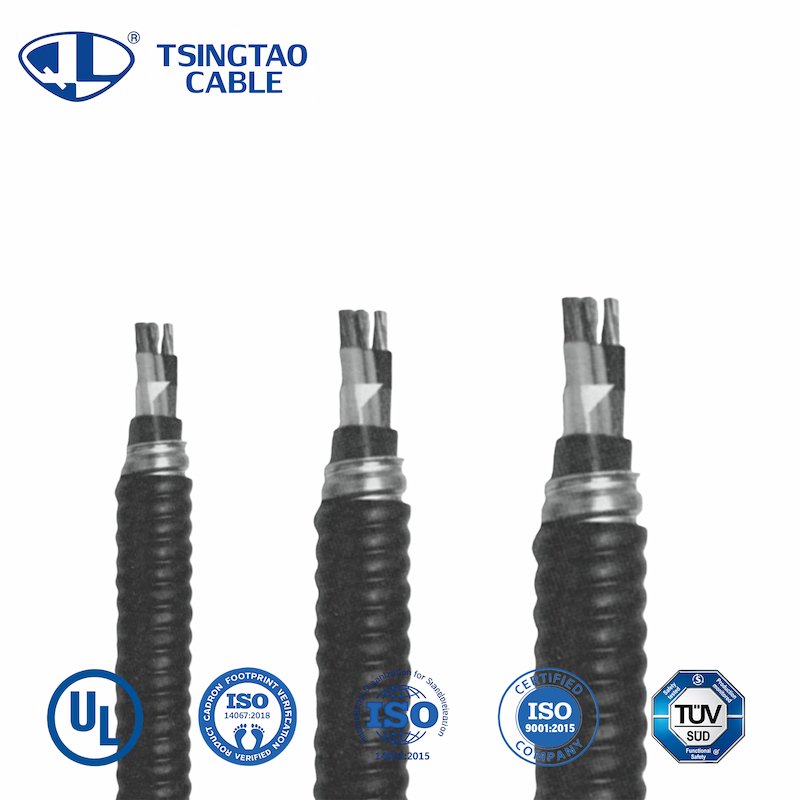

This specification covers Type TECK 90 armored cable manufactured with soft annealed copper conductors or AA-8000 series aluminum alloy conductors.
The conductors are insulated with cross-linked polyethylene (XLPE) and individually protected by an inner PVC jacket, an overall interlocked aluminum alloy armor, and an outer PVC jacket.

TECK 90 cable is designed to provide superior mechanical protection, moisture resistance, and chemical resistance, and is manufactured in accordance with applicable CSA standards for armored power and control cables.

UL File No.: E313205.

Application

TECK 90 cable is intended for use as power, control, and auxiliary circuit cable in industrial, commercial, and institutional installations, especially in harsh or demanding environments.

Typical applications include:

• Industrial plants and manufacturing facilities

• Petrochemical and oil & gas installations

• Mining operations

• Pulp and paper mills

• Commercial and institutional buildings

TECK 90 cable is suitable for installation:

• In dry and wet locations

• Indoors or outdoors

• In cable trays, raceways, and free air, as permitted by the Canadian Electrical Code (CEC)

Temperature rating:

• 90°C in dry and wet locations

Voltage rating:

• 600 V (standard)

Construction

• Conductors:

  • Soft annealed copper or AA-8000 series aluminum alloy

  Sizes:

  • Available in standard AWG and kcmil sizes

  • Solid or stranded conductors, depending on size

  Insulation:

  • Cross-linked polyethylene (XLPE)

  • Thickness: as per applicable CSA standards

  Inner Jacket:

  • Polyvinyl chloride (PVC)

  • Provides moisture protection and insulation integrity

  Armor:

  • Interlocked aluminum alloy armor

  • Offers excellent mechanical protection and grounding continuity

  Outer Jacket:

  • Polyvinyl chloride (PVC)

  • Resistant to moisture, abrasion, chemicals, and sunlight

  Cable Identification:
  The cable shall be legibly marked with conductor size (AWG or kcmil), cable type (TECK 90), rated voltage, temperature rating, manufacturer’s name, applicable CSA standard, date of manufacture, and sequential footage marking.
